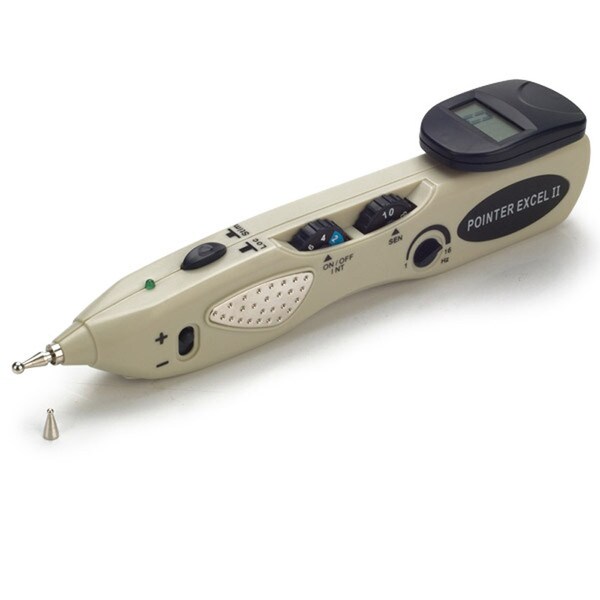

Pointer Excel II

The most user friendly hand held stimulator. Features a built-in, 0.35" x 1.0" LCD digital meter which displays both frequency and location.

Unit features two grounding plates on the unit (allowing use with either left or right hands) as well as a hand probe with grounding pole and attached wire. Two probe tips are included with unit: ear 2 mm (0.08") and body 4 mm (0.16"). Other standard accessories include 9 volt battery, carrying case, and instructions.

An effective push button adjustable stimulation offers immediate treatment. Based on the setting of the output dial, either normal milli-amp output or micro-amp current output is produced (ie, blue zone on the dial is microamp).

This new device also includes more advanced features. The frequency is adjustable (1 to 16 Hz) and is also displayed on the LCD digital display when the stimulation button is pressed. Furthermore, a polarity reversal switch offers the options of tonification (-) or sedation (+) treatment.

Unit features two grounding plates on the unit (allowing use with either left or right hands) as well as a hand probe with grounding pole and attached wire. Two probe tips are included with unit: ear 2 mm (0.08") and body 4 mm (0.16"). Other standard accessories include 9 volt battery, carrying case, and instructions.

SPECIFICATIONS:

Output Channels:    one
Frequency:    1 to 16 Hz
Frequency meter:    LCD, 0.35”x1.0”
Volts and current:    Normal dial: 22.5 volts, 0 to 45 milliamps
Blue zone: 11.0 volts, 0 to 2 microamps
Polarity reversal:    +/- by switch
Pulse width:    260 microseconds (µS)
Pulse shape:    asymmetric biphasic square wave
Pulse modes:    continuous
Skin impedance monitoring:    meter, sound, and light indication
Power source:    9 volt battery
Size, weight, color:    8.6" x 1.5" x 1", 86 gm, Beige
