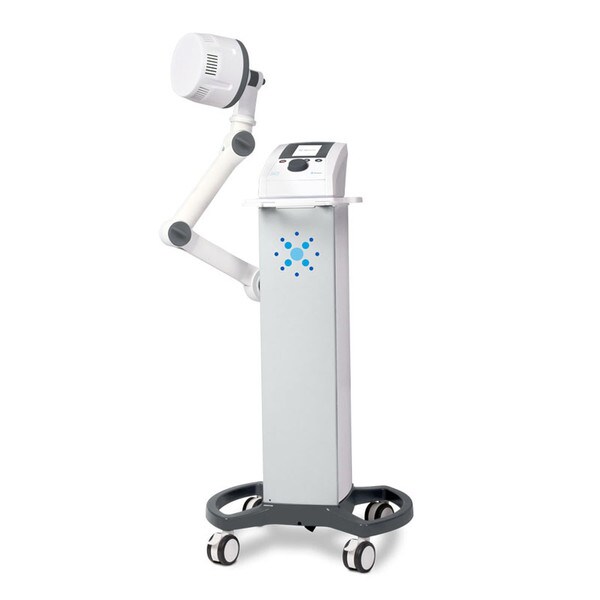

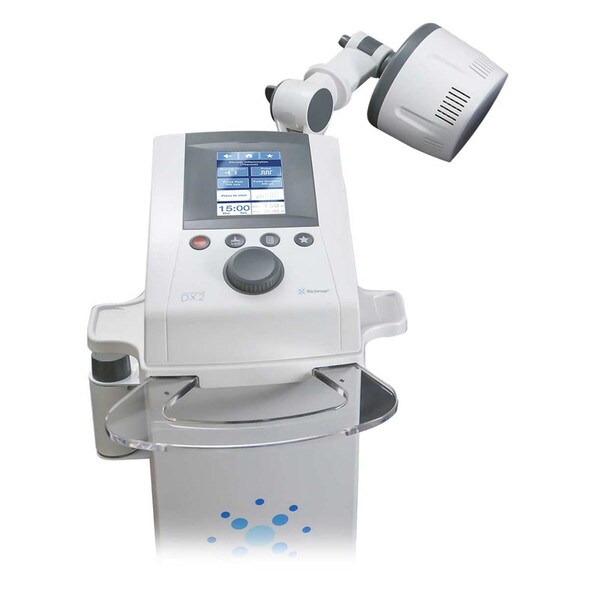

TheraTouch DX2 Shortwave Diathermy
Features of the TheraTouch DX2 Shortwave Diathermy
SCIENTIFIC DOSAGE CONTROL Scientific Dosage Control allows for two additional dosimetry settings within Dose III, providing more options for therapeutic heating within patient comfort tolerances.
DOSE I - Subthermal
DOSE II - Mild Heat
DOSE III - Low Heat
DOSE III SDC M - Moderate Heat
DOSE III SDC H - High Heat
DOSE IV - Vigorous Heat
High Efficiency Auto-Tuning (H.E.A.T.) Resonant auto-tuning technology continually measures and adjusts to changes in the patient's impedance to provide maximum energy transmission. This results in faster heating and shorter treatment times.
Microcirculation Indication The Microcirculation Indication is an exclusive parameter found in the DX2's Quick Link library to enhance tissue healing, based on studies of subthermal pulsed shortwave diathermy.
- Anatomical Treatment Guide for easy monode placement
- Save up to 99 user-defined favorites
- 9 evidence-based Quick Links by Indication
- Qualitative Thermal Dosimetry with six settings included
- Easy to use, touch-screen interface
- USB port for easy software upgrades
- Dual treatment indicators on unit and inductive drum
- 3 year warranty
TECHNICAL SPECIFICATIONS
Continuous Mode Output 100W Average Power at 50Ω
Pulsed Mode Output 200W Peak Power at 50Ω
Power 100-240 V ~; 50/60 Hz
Output Frequency 27.12 MHz ± 0.6%
Power Increment Settings .5 W
Pulse Width 20 - 400 μsec in 20 μsec increments
Pulse Frequencies 10 - 800 Hz in 10 Hz increments
Treatment Duration 1 - 30 min in 1 min increments
Electrical Class CLASS I
Electrical Type TYPE BF
Regulatory Risk Class IIb according to MDD 93/42/EEC
