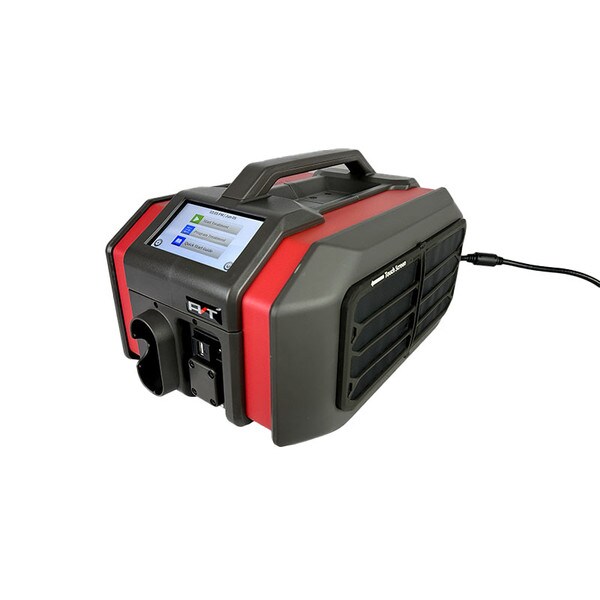

Therm-X AT Unit
Imagine not having to keep refilling, cleaning and drying out your ice-based machine. Imagine being able to maintain the specific temperature you want delivered to the patient, for as long as you want. Then consider the new treatments you can apply with heat, compression, and contrast.
The Therm-X, from Zenith Technical Innovations, uses a new thermal control technology to treat post-traumatic and post-surgical conditions where localized thermal therapy is indicated.
This innovative technology allows the user to select Heat, Cold, or Contrast and boasts a temperature range of 34° F to 110° F.
With its digital control, the Therm-X circulates a coolant that can maintain a specific temperature for the entire treatment cycle. Compare this to heat packs or ice-based machines that lose temperature once they’re applied.
The fluid passes through a garment with a tailored treatment area to concentrate the cold or heat where it is needed most.
Four garment compression settings ensure full contact for optimal thermal transfer.
Easy fill tank uses distilled water and isopropyl alcohol. Does not require constant refilling and cleaning.
THERM-X AT SPECIFICATIONS:
10" x 9" x 15"
~ 14 lbs.
Coolant Tank Capacity
90% Distilled Water, 10% Isopropyl Alcohol
100V AC - 240V AC, 50/60 Hz
5' Long with 3-in-one Connector
Default Cold Settings
34°F, 45°F, 55°F
Custom Cold Settings
34°F - 55°F
Default Heat Settings
105°F, 107°F, 110°F
Custom Heat Settings
105°F - 110°F
20, 30, or 40 minutes
Contrast Temperature Settings
50°F to 105°F alternating (100 min)
Garment Edema Pressures
20, 45, and 70 mm Hg (low, medium, and high)
