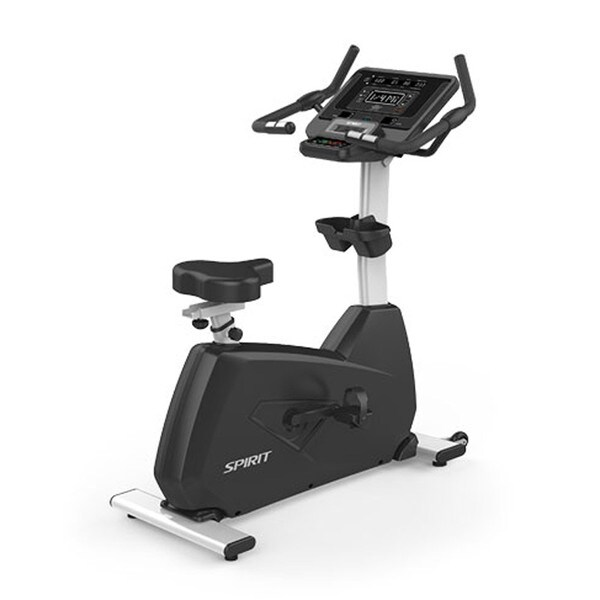

Spirit Fitness CU800 Upright Bike

SKU: 1003514

The electronics in the CU800 are designed to provide intuitive operation. The console features a large easy-to-read display with a variety of program options for users of all fitness levels, an integrated fan to keep clients cool, and a USB port to help keep their devices charged. The large multi-position handlebar design includes convenient hand pulse grip sensors for heart rate monitoring on demand.

  • Built-in contact and telemetric heart rate capabilities for a more effective workout
  • Generator-powered console means there is no need for outlets or power cords
  • Padded ergonomic seat with fore/aft/up/down adjustments for extra comfort with customizable fit
  • Oversized foot pedals with fast-latching system
  • 40 levels of resistance to satisfy the needs of beginners or advanced exercisers
  • Adjustable cooling fan and dual storage trays

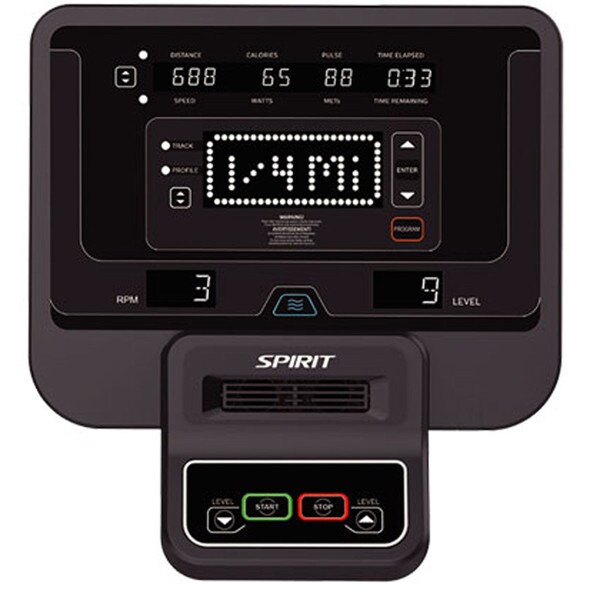

The bright LED screen displays all pertinent information is displayed during the workout and a summary of accumulated data scrolls when you have finished.

Comfort Molded Seat

The dual-spring seat is made of high durometer foam pads to keep users comfortable throughout their workout.

Foot Pedals

Pedals have 2° of inversion that help place your body into an anatomically correct position throughout the workout; they are also padded to take stress off of the feet.


There are transport wheels integrated into the front floor support tube for ease of repositioning. Simply lift and tilt the front end to roll the unit to your desired location.


You can adjust the seat easily and intuitively by pulling up on the yellow spring-loaded handle located directly in front of it.

Pulse Grip Handles

Ergonomically friendly pulse grip handles are mounted comfortably in the front near the console for a more natural hand position and upright posture.



Console:White Multi-Window LED Displays (18-character message center, profile matrix, RPM, and level), cooling fan, USB charging port, Bluetooth FTMS (connects to fitness apps), C-safe
Console Feedback:Distance, Speed, Calories, Watts, Pulse, METs, Time Elapsed, Time Remaining, RPM, Level, Program Profile
Programs:Manual, Hill, Fat burn, Cardio, HIIT, Interval, 2 Heart Rate, Custom, Fit Test, Constant Power
Heart Rate:Contact & Bluetooth Compatible (Chest Strap Not Included)
Bluetooth:BLUETOOTH (for chest straps and 3rd party apps)
Resistance:40 Levels
Drive Train:Poly-V Belt w/Self-Tensioner
Flywheel:30 lbs.
Seat:Dual-Spring Cushioned
Foot Pedals:Oversized with fast-latching system
Adjustments:Easy-Ratchet w/ full Fore/Aft Seat
Crank:3-Piece, Cold-Forged Steel, Case-Hardened Axle & Commercial-Grade Sealed Bearings
Frame:Heavy-Gauge High-Strength Steel w/ Durable Powder-Coat Paint
Dimensions:49” L x 26” W x 58” H
Product Weight:127 lb
Maximum User Weight:450 lb

Residential Warranty

US Warranty
Brake:10 Years
Parts:10 Years
Labor:2 Years

Commercial Warranty

US Non-Dues Paying
Brake:5 Years
Parts:5 Years
Labor:2 Years
