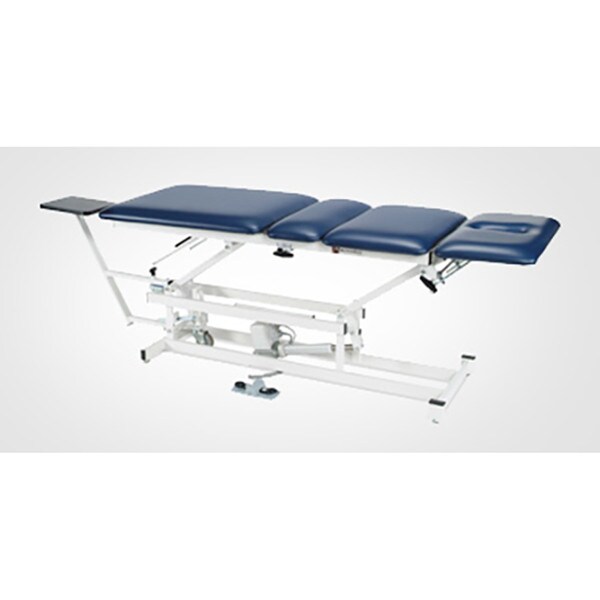

Armedica Traction Table
WITH FOOT SWITCH
Friction-Free Lumbar Section Separates 5″ and rolls on 4 Steel Ball Roller Bearings. The Rolling Section can be locked in any position with a positive gear rack system.
34 oz. Heavy-duty vinyl with Permablok 3(R) bacterial protection.
1” Firm density foam tops.
Radiused, seamless corners on upholstered components.
Top sections have welded steel support frames.
Pivoting joints house hardened steel shoulder bolts with locking nuts to ensure years of trouble-free operation.
Footswitch control.
Power-assisted caster system.
110 volts, 60Hz motor.
400 lb. Lifting weight capacity.
Top Section: Four Piece
Width: 27″
Length: 76″
Overall Length: 99″
Head Section: One Section
15″ x 27″ Raises 45 Degrees. Lowers 90 Degrees. Contoured Face / Nose opening.
Center Section: 10″ x 27″
Thoracic Section: 17-1/2″ x 27″
Foot Section: 33″ x 27″ Raises 80 degrees.
Capacity (lbs): 400
WITH BAR ACTIVATION SWITCH
Friction Free Lumbar Section Separates 5″ and rolls on 4 Steel Ball Roller Bearings. The Rolling Section can be locked in any position with a positive gear rack system.
Heavy duty steel tube Hi Lo control allows adjustment of the table height while keeping both hands on the patient and both feet on the floor. The control is designed to allow easy access from anywhere around the table without disrupting the treatment.
Minimum Height : 18″
Maximum Height : 37″
Heavy-duty vinyl with bacterial protection.
1.5″ Firm density foam tops.
Radiused, seamless corners on upholstered components.
Top sections have welded steel support frames.
Pivoting joints house hardened steel shoulder bolts to ensure years of trouble-free operation.
4 Caster Base with 4″ Total Lock ball bearing casters.
110 volts, 60Hz motor.
Top Section: Four Piece
Width: 27″
Length: 76″
Overall Length: 99″
Head Section: One Section
15″ x 27″ Raises 45 Degrees. Lowers 90 Degrees. Contoured Face / Nose opening.
Center Section: 10″ x 27″
Thoracic Section: 18″ x 27″
Foot Section: 33″ x 27″ Raises 80 degrees.
Lifting Capacity (lbs): 400
